CARINA MÉDICAL
Medical examination furniture

Examination couches

Examination couch width 70cm, multifunction pedal

OVALIA V2 range
Ref. : OV2-96-125

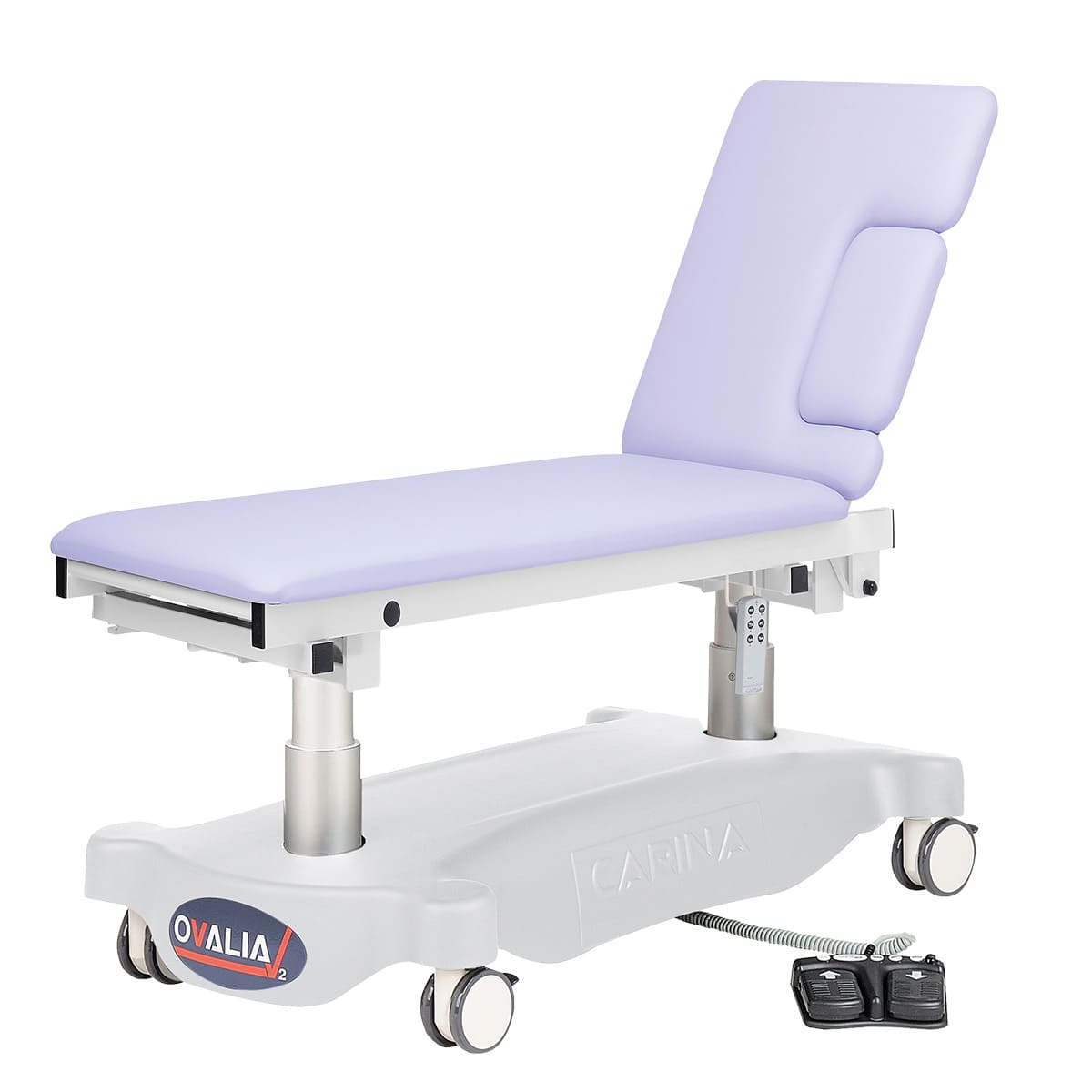

Discover this electric cardiology couch in 2 sections with a width of 70cm. Designed with a removable cardiology cut to facilitate echocardiography exams and all exams from rib cage, this couch if perfect to practice cardiology. Supplied with a stretched upholstery of 5 cm thickness, M1 fire retardant class. The backrest is adjustable by an electric jack. It's electric height adjustment allows you to use it from 48 to 88cm thanks to a multifunction pedal. With the 4 wheels with brakes diameter 125mm you can move the couch as you want. The emergency position can be reached easily thanks to the Trendelenburg and Anti Tredelenburg features. The couch is supply with a paper roll holder behind the backrest. All our exam couches from the OV2 range are delivered with a shapped base in light grey colour ( RAL 7035).

Upholstery colours

Standard colours
Optional colours
Base colours

Standard colours
Optional colours
Where to find this product ?
Examination couch width 70cm, multifunction pedal
CE
Fabrication française
French made
Examination couch width 70cm, multifunction pedal
CE
Fabrication française
French made
Examination couch width 70cm, multifunction pedal
Examination couch width 70cm, multifunction pedal

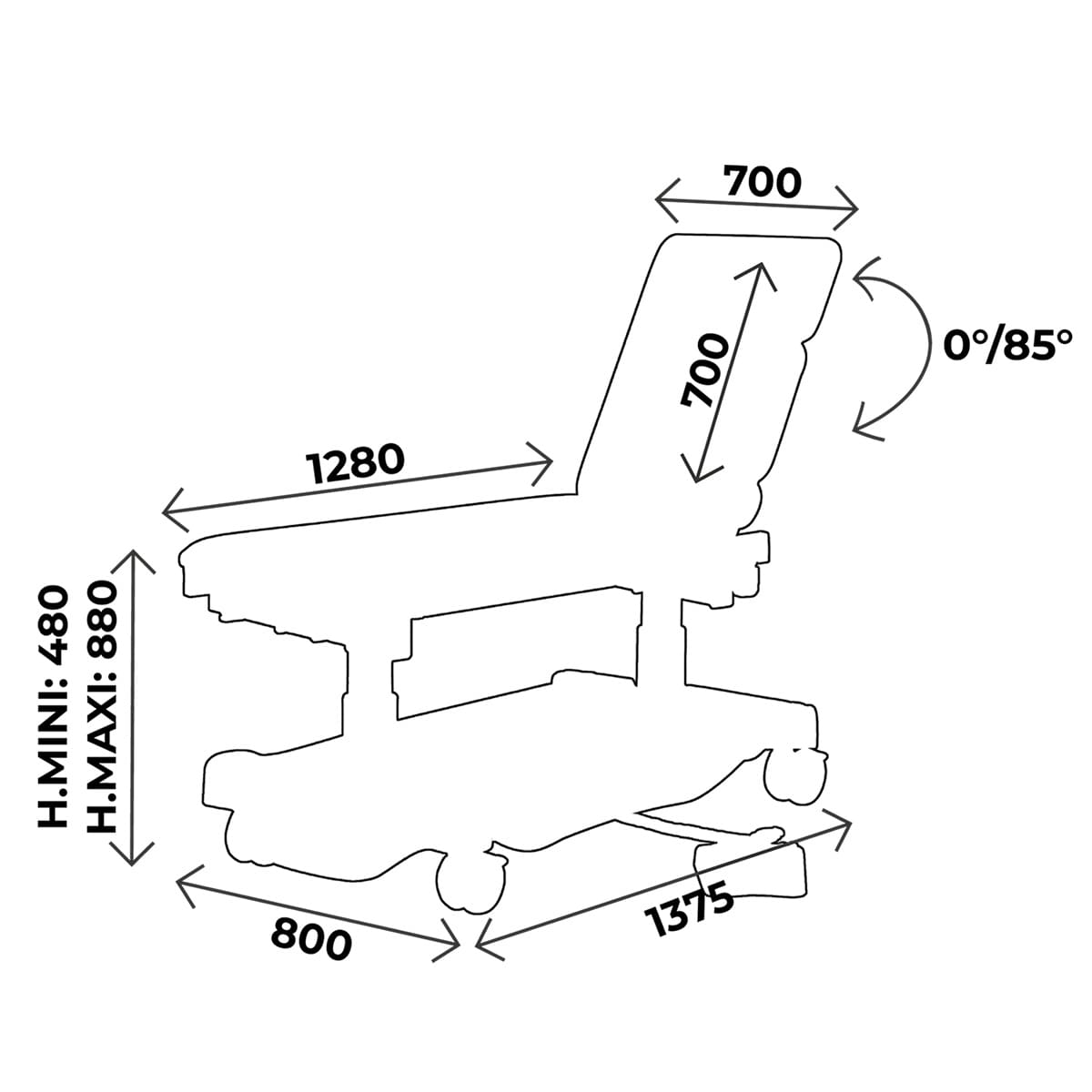

Product Features

Height (cm)
Adjustable electrically from 48 to 88cm
Type of control
Multifunction pedal
Width
70cm
Upholstery's thickness
5cm
Coating
Fire retardant M1 class
Load capacity
200kg
Accessories include in standard
Paper roll holder on the foot side, wheels diam 125mm with brakes, removable part for cardiology exams
Number of sections
2 sections

Related accessories

Customize and adapt your medical furniture further to your needs
Plastic protection cover for all couches
Plastic protection cover for all couches
ACC 514-UNIVERSE
Pair of stainless steel rails 25x10 length 1500mm for OVALIA 2 sections.
Pair of stainless steel rails 25x10 length 1500mm for OVALIA 2 sections.
ACC OVALIA02
Pair of clamps for couches width 70cm
Pair of clamps for couches width 70cm
ACC 76-OVALIA-70
Pair of stainless steel stirrups diam. 14mm, without clamp
Pair of stainless steel stirrups diam. 14mm, without clamp
ACC 105
Blood test splint in colour without clamp, the unit
Blood test splint in colour without clamp, the unit
ACC 110
Polyurethane blood test splint without clamp, the unit
Polyurethane blood test splint without clamp, the unit
ACC 110POLY
Pair of legrests on knee system in black polyurethane diam. 14mm, without clamp
Pair of legrests on knee system in black polyurethane diam. 14mm, without clamp
ACC 964
Stainless steel infusion stand diam. 16mm, 2 plastic hooks, without clamp
Stainless steel infusion stand diam. 16mm, 2 plastic hooks, without clamp
ACC 32012
Stainless steel infusion stand diam. 16mm, 2 stainless steel hooks, without clamp
Stainless steel infusion stand diam. 16mm, 2 stainless steel hooks, without clamp
ACC 32014
Half moon head rest width 70cm fire retardant M1 class
Half moon head rest width 70cm fire retardant M1 class
ACC 54002
Pair of retractable security side rails for coucheses width 70cm
Pair of retractable security side rails for coucheses width 70cm
ACC BARRILITOV02
Battery, capacity 20 cycles (1 cycle = 1x height's up/ down + 1x backrest's up/ down)
Battery, capacity 20 cycles (1 cycle = 1x height's up/ down + 1x backrest's up/ down)
ACC BATTERIE01
Base colour in a different colour than the standard light grey available in different colours
Base colour in a different colour than the standard light grey available in different colours
ACC-CAPOT
4 skids instead of wheels
4 skids instead of wheels
ACC-FIXE
OVALIA/ FEMINA pedal
OVALIA/ FEMINA pedal
ACC-OVALIA03
Hand remote for OVALIA + connecting cable for double control
Hand remote for OVALIA + connecting cable for double control
ACC-OVALIA06
Ergonomic head rest
Ergonomic head rest
ACC TETERGO
4 wheels diam. 150mm with central brake system
4 wheels diam. 150mm with central brake system
RL-150
Cover for legrests (ACC964) in upholstery, the unit
Cover for legrests (ACC964) in upholstery, the unit
SLFEMIREPOSE
