CARINA MÉDICAL
Medical examination furniture

Examination couches

Examination couch width 70cm, hand remote

OVALIA V2 range
Ref. : OV2-25-125

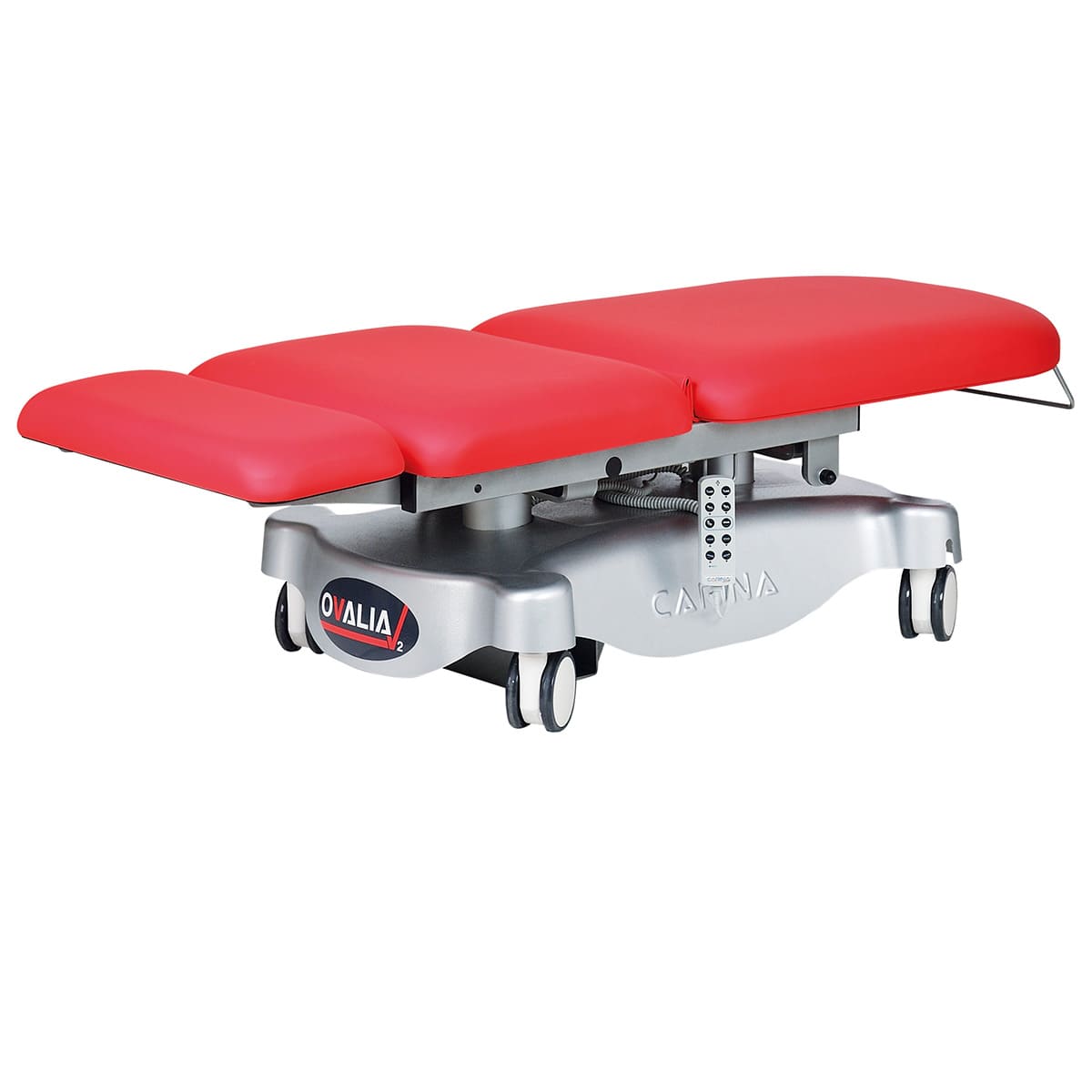

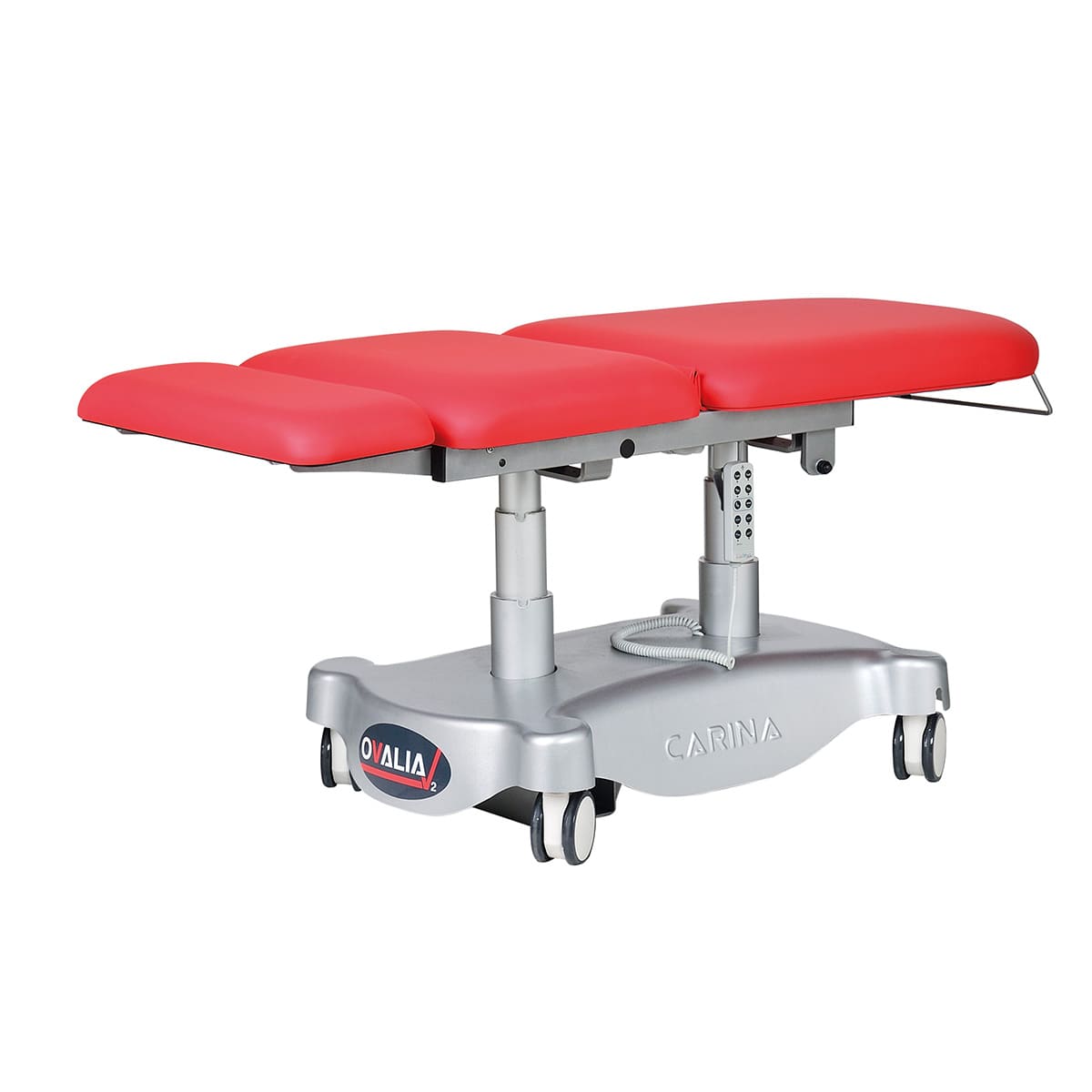

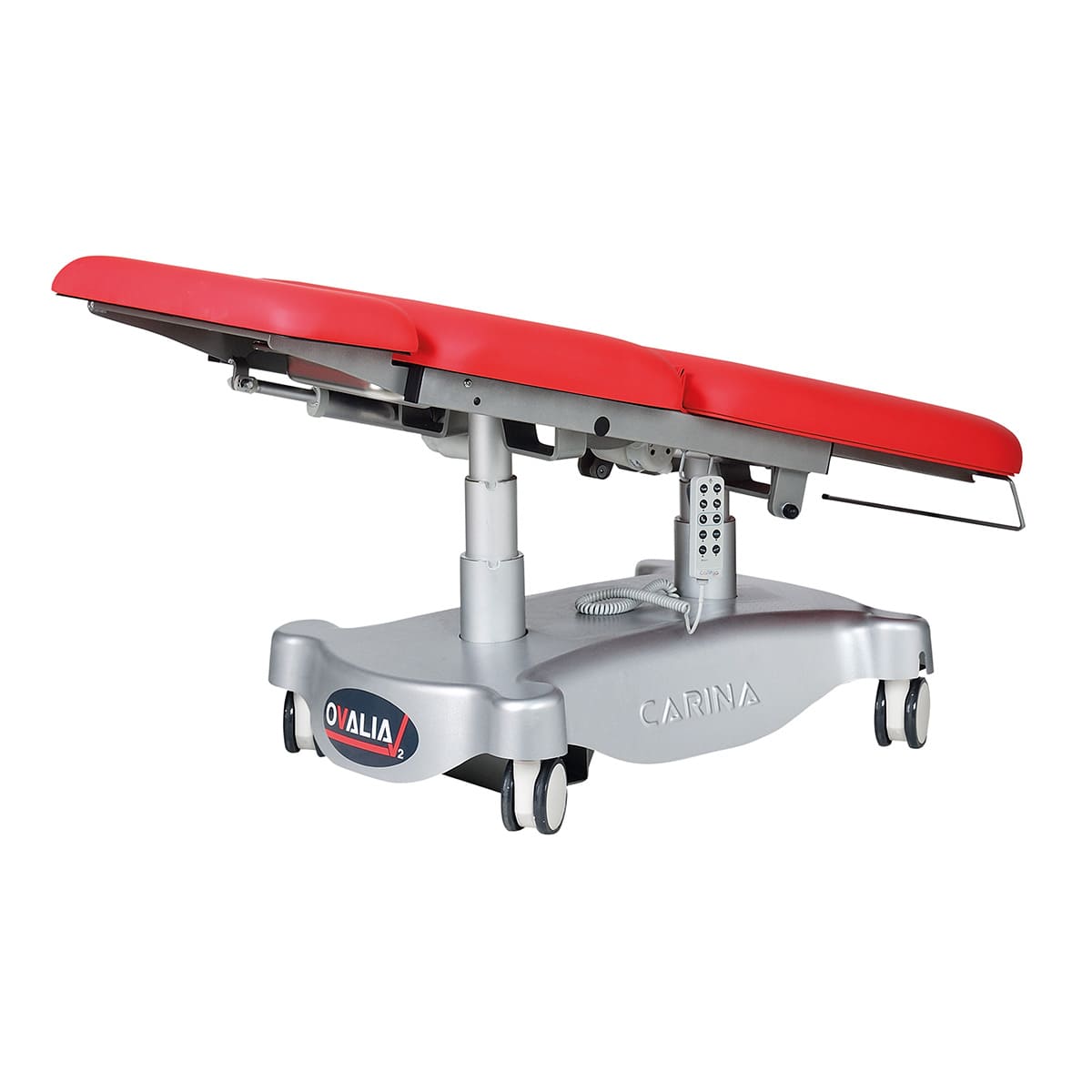

Discover this medical examination couch in 3 sections with a width of 70cm. It's chair configuration allows to have a very compact couch, perfectly adapted for small surfaces. A stainless steel drawer is also include. Supplied with a stretched upholstery of 5cm thickness, M1 fire retardant class. The backrest and leg rests are adjustable by two independant gas jacks, controlled by a bilateral manual handle for the back and a separate handle for the leg rest. Its electric height adjustment allows you to use it from 48 to 88 cm thanks to a multifunction hand remote. With the 4 wheels with brakes diameter 125mm, you can move the couch as you want. The emergency position can be reached easily thanks to the Trendelenburg feature. The couch is supply with a paper roll holder behind the backrest. All our exam couches from the OV2 range are delivered with a shapped base in light grey colour ( RAL 7035).

Upholstery colours

Standard colours
Optional colours
Base colours

Standard colours
Optional colours
Where to find this product ?
Examination couch width 70cm, hand remote
CE
Fabrication française
French made
Examination couch width 70cm, hand remote
CE
Fabrication française
French made
Examination couch width 70cm, hand remote
CE
Fabrication française
French made
Examination couch width 70cm, hand remote
CE
Fabrication française
French made
Examination couch width 70cm, hand remote
CE
Fabrication française
French made
Examination couch width 70cm, hand remote
Examination couch width 70cm, hand remote
Examination couch width 70cm, hand remote
Examination couch width 70cm, hand remote
Examination couch width 70cm, hand remote

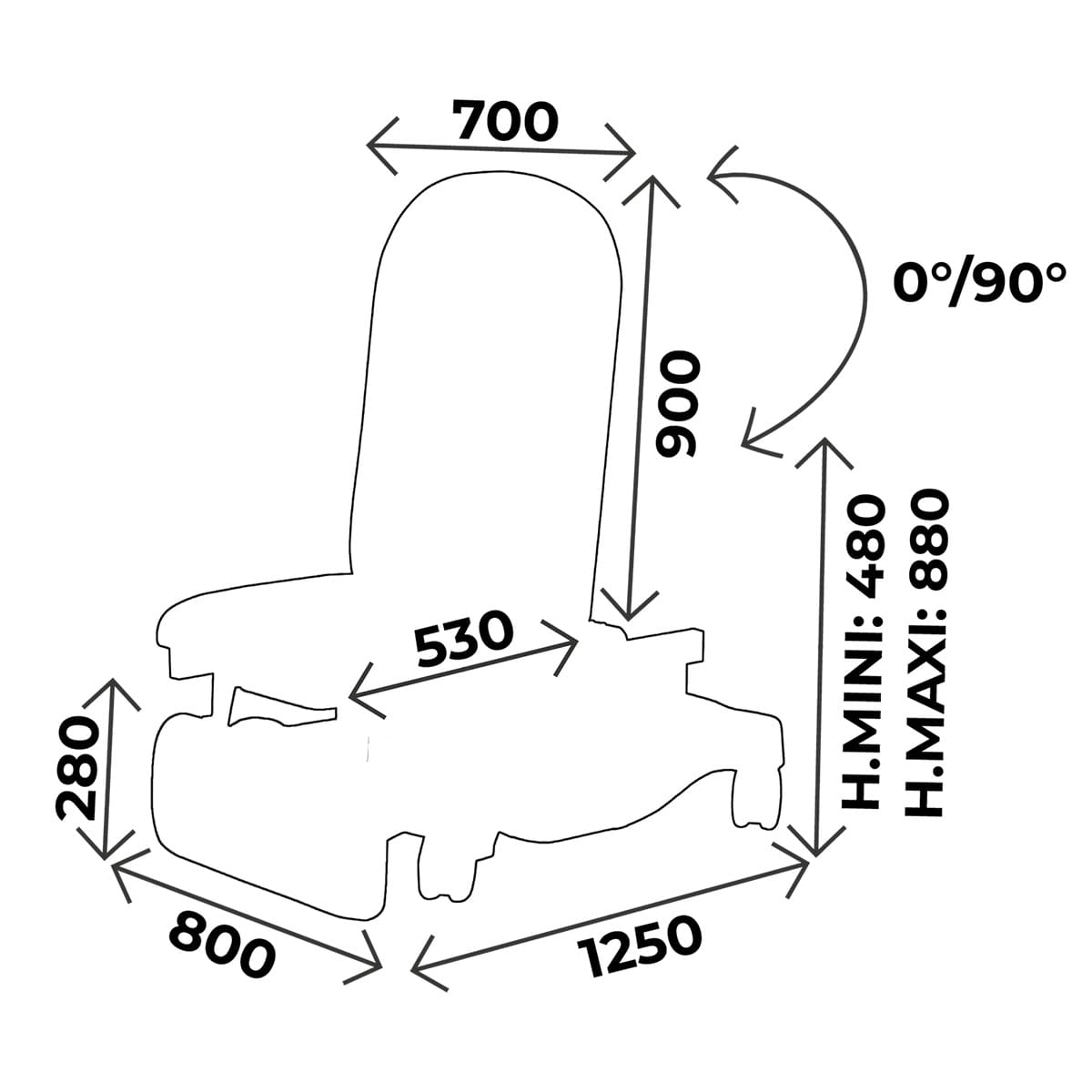

Product Features

Height (cm)
Adjustable electrically from 48 to 88cm
Type of control
Multifunction hand remote
Width
70cm
Upholstery's thickness
5cm
Coating
Fire retardant M1 class
Load capacity
200kg
Accessories include in standard
Stainless steel drawer, paper roll holder on the head side, wheels diam 125mm with brakes
Height
Electric height adjustment
Control
Hand remote
Number of sections
3 sections (chair position)

Related accessories

Customize and adapt your medical furniture further to your needs
Face hole with plug cushion
Face hole with plug cushion
ACC 832
Pair of stainless steel rails 25x10 length 780mm for OVALIA 3 sections.
Pair of stainless steel rails 25x10 length 780mm for OVALIA 3 sections.
ACC-OVALIA04
Pair of clamps for OV2 3 sections (with foldable leg rest) width 70cm
Pair of clamps for OV2 3 sections (with foldable leg rest) width 70cm
ACC76-OV-25-70
Pair of stainless steel stirrups diam. 14mm, without clamp
Pair of stainless steel stirrups diam. 14mm, without clamp
ACC 105
Blood test splint in colour without clamp, the unit
Blood test splint in colour without clamp, the unit
ACC 110
Polyurethane blood test splint without clamp, the unit
Polyurethane blood test splint without clamp, the unit
ACC 110POLY
Pair of legrests on knee system in black polyurethane diam. 14mm, without clamp
Pair of legrests on knee system in black polyurethane diam. 14mm, without clamp
ACC 964
Stainless steel infusion stand diam. 16mm, 2 plastic hooks, without clamp
Stainless steel infusion stand diam. 16mm, 2 plastic hooks, without clamp
ACC 32012
Stainless steel infusion stand diam. 16mm, 2 stainless steel hooks, without clamp
Stainless steel infusion stand diam. 16mm, 2 stainless steel hooks, without clamp
ACC 32014
Battery, capacity 20 cycles (1 cycle = 1x height's up/ down + 1x backrest's up/ down)
Battery, capacity 20 cycles (1 cycle = 1x height's up/ down + 1x backrest's up/ down)
ACC BATTERIE01
Base colour in a different colour than the standard light grey available in different colours
Base colour in a different colour than the standard light grey available in different colours
ACC-CAPOT
4 skids instead of wheels
4 skids instead of wheels
ACC-FIXE
OVALIA/ FEMINA pedal
OVALIA/ FEMINA pedal
ACC-OVALIA03
Pedal for OVALIA + connecting cable for double control
Pedal for OVALIA + connecting cable for double control
ACC-OVALIA05
Ergonomic head rest
Ergonomic head rest
ACC TETERGO
4 wheels diam. 150mm with central brake system
4 wheels diam. 150mm with central brake system
RL-150
Cover for legrests (ACC964) in upholstery, the unit
Cover for legrests (ACC964) in upholstery, the unit
SLFEMIREPOSE
Electric jack for OVALIA's backrest
Electric jack for OVALIA's backrest
ACC 14
